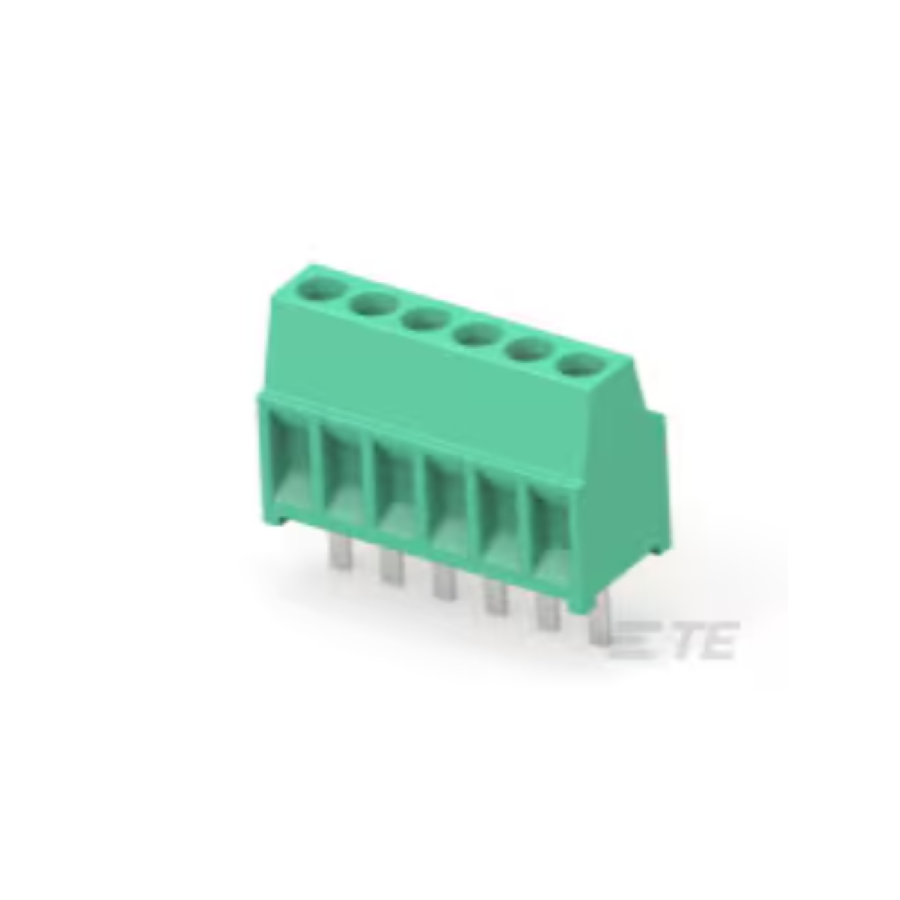

282834-6
Manufacturer:
TE Connectivity
Mfr.Part #:
282834-6
Datasheet:
Description:
Terminal Blocks Through Hole 6 2.54 mm 10 A 150 V 30 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Length | 15.7 mm |
| Width | 6.5 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Box |
| Voltage Rating | 150 V |
| Depth | 6.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 150 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Number of Circuits | 6 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Gender | Female |
| Number of Contacts | 6 |
| ELV | Compliant |
| Number of Poles | 6 |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 30 AWG |
| Thread Size | M1.6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 6 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 150 V |
| Max Supply Voltage (AC) | 150 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | Green |
| Plating | Brass, Steel |
| Tail Length | 3.4 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 16 AWG |
Stock: 865
Distributors
pcbx
pcbxUnit Price$4.14299
Ext.Price$4.14299
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.14299 | $4.14299 |
| 10 | $3.41031 | $34.10310 |
| 25 | $3.22083 | $80.52075 |
| 50 | $3.04184 | $152.09200 |
| 100 | $2.93977 | $293.97700 |
| 300 | $2.84113 | $852.33900 |
| 500 | $2.74580 | $1372.90000 |
| 1000 | $2.65370 | $2653.70000 |
